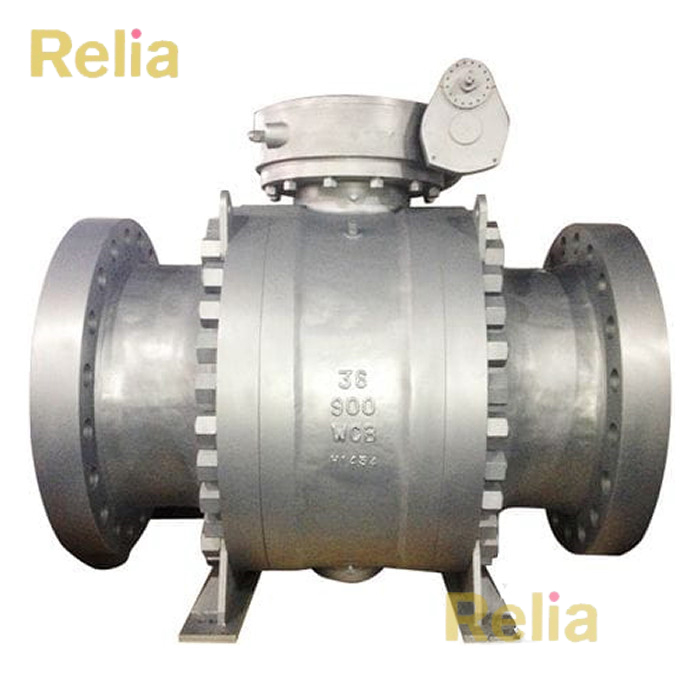

36 Inch Ball Valve
36 inch ball valve (DN900) is designed for your oil and gas pipeline or process application with API 6D approval.
- Size
- 36" (DN900)
- Pressure Rating
- Class 150-900
- Body Material
- Carbon Steel, Stainless, Duplex Steel
- Unit Price (min)
- $90000
36 inch ball valve dimensions and weight cover Class 150–900; the valve bore dimensions and face-to-face (end-to-end) dimensions are as per API 6D.
36 Inch Ball Valve Dimensions & Weight (in mm)
| Size | Pressure | D | L(RF) | L(BW) | L(RTJ) | H1 | H2 | V | Weight |
| inch | ANSI | mm | mm | mm | mm | mm | mm | mm | Kg |
| 36" | Class 150 | 874 | 1524 | 1727 | — | 896.5 | 809 | 760 | 7996 |
| 36" | Class 300 | 874 | 1727 | 1727 | — | 1087.5 | 847.5 | 760 | 9279 |
| 36" | Class 600 | 855 | 2083 | 2083 | 2099 | 1179.5 | 887.5 | 800 | 11928 |
| 36" | Class 900 | 855 | 2286 | 2286 | 2315 | 1087.5 | 779.3 | 900 | 24185 |
36 Inch Ball Valve Dimensions & Weight (in inch)
| Size | Pressure | D | L (RF) | L (BW) | L (RTJ) | H1 | H2 | V | Weight | |
| inch | mm | ANSI | inch | inch | inch | inch | inch | inch | inch | lb |
| 36" | 900 | Class 150 | 34.41 | 60.00 | 67.99 | — | 35.30 | 31.85 | 29.92 | 17627.59 |
| 36" | 900 | Class 300 | S4.41 | 67.99 | 67.99 | — | 42.81 | 33.37 | 29.92 | 20455.57 |
| 36" | 750 | Class 600 | 28.03 | 65.00 | 65.00 | 65.51 | 39.86 | 30.53 | 29.92 | 16518.78 |
| 36" | 750 | Class 900 | 28.03 | 74.02 | 74.02 | 74.88 | 43.09 | 31.85 | 31.50 | 30270.31 |
Leave Us Your Info
Could you please kindly fulfill the following information when enquiring:
Valve type (ball, gate, globe, check etc.), valve size, pressure class, valve material, and end connection (flanged, butt welding etc.)
