4 Inch Ball Valve

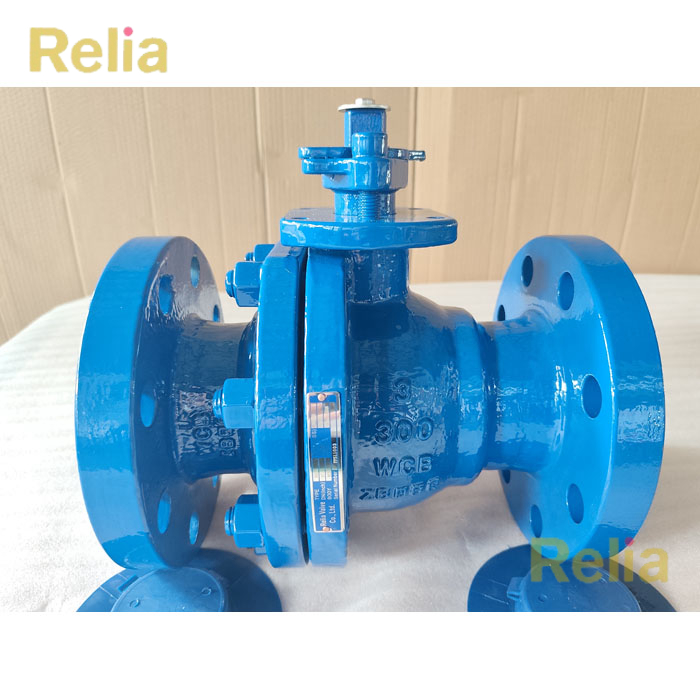

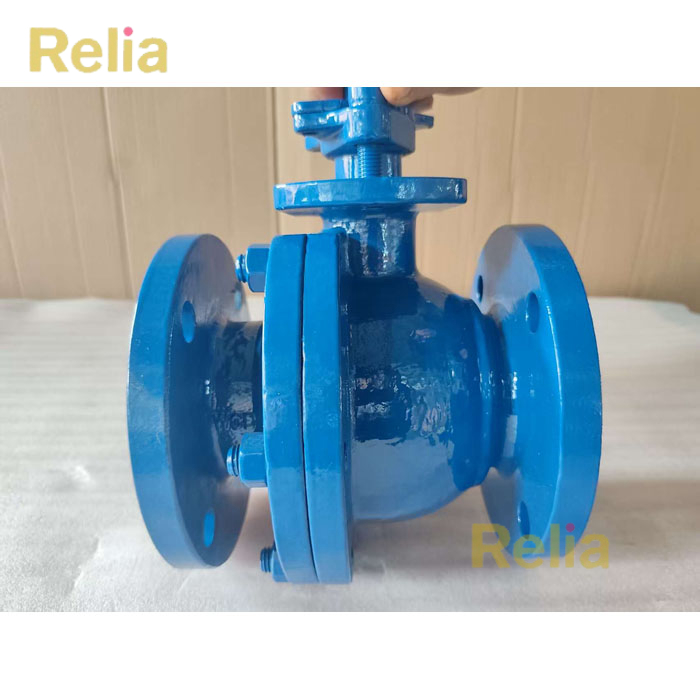

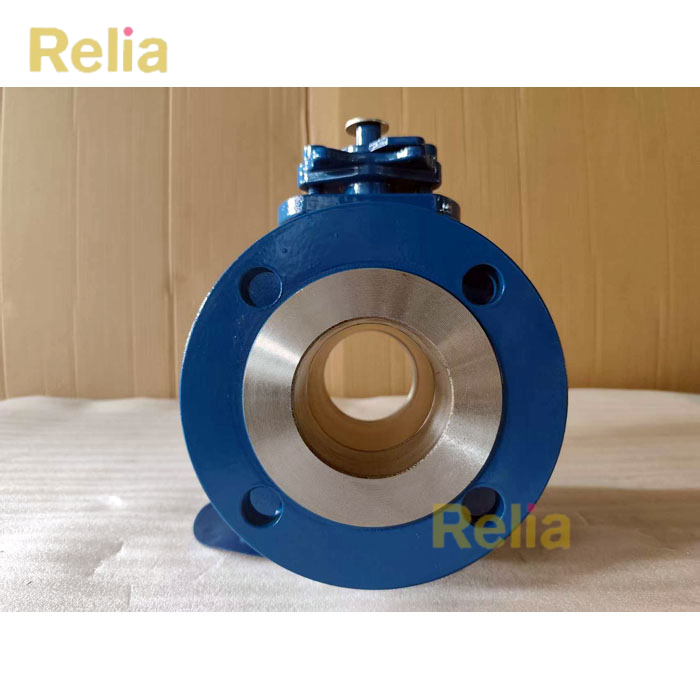

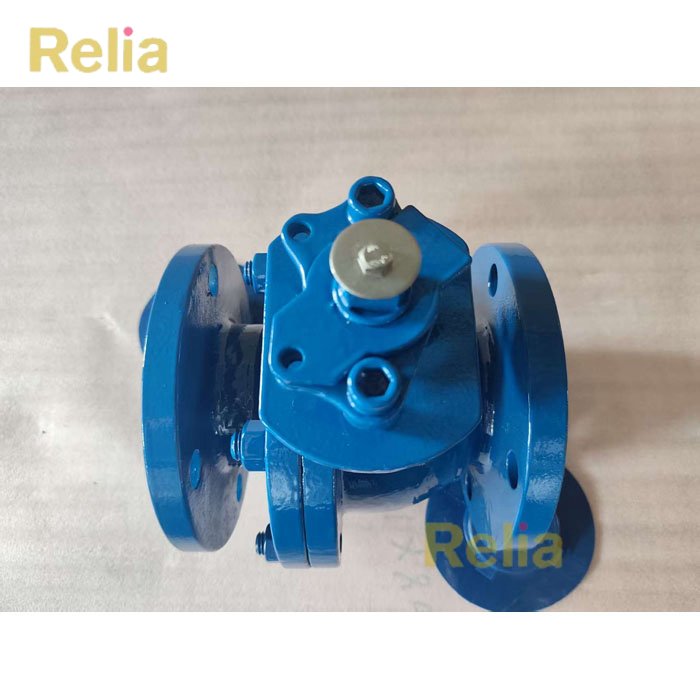

4 inch steel ball valves with flanged ends are ideal for use in oil & gas applications.
- Size
- 4"
- End Connections
- Flanged
- Standard Application
- API 6D
- Unit Price (min)
- $96
4 Inch ball valve dimensions and weight covers Class 150 - 2500, the valve bore dimensions, and face to face (end to end) dimensions are as per API 6D.
4 Inch Ball Valve Dimensions & Weight (in mm)
| Size | Pressure | L | H1 | H2 | W | V | Weight | ||
| RF | BW | RTJ | |||||||
| inch | ANSI | mm | mm | mm | mm | mm | mm | mm | Kg |
| 4" | Class 150 | 229 | 305 | — | 222.3 | 126.5 | 400 | — | 47 |
| 4" | Class 300 | 305 | 305 | — | 282.0 | 142 | 815 | — | 70 |
| 4" | Class 600 | 432 | 432 | 435 | 217.5 | 103.3 | — | 400 | 117 |
| 4" | Class 900 | 457 | 457 | 460 | 225.5 | 138.5 | — | 400 | 129 |
| 4" | Class 1500 | 546 | S46 | S49 | 243 | 152.0 | — | 400 | 193 |
| 4" | Class 2500 | 673 | 673 | 683 | 257 | 186 | — | 600 | 462 |
4 Inch Ball Valve Dimensions & Weight (in inch)
| Size | Pressure | D | L (RF) | L (BW) | L (RTJ) | H1 | H2 | W | V | Weight | |
| inch | mm | ANSI | inch | inch | inch | inch | inch | inch | inch | inch | lb |
| 4" | 100 | Class 150 | 3.94 | 9.02 | 12.01 | — | 8.75 | 4.98 | 15.75 | — | 103.62 |
| 4" | 100 | Class 300 | 3.94 | 12.01 | 12.01 | — | 11.10 | 5.59 | 32.09 | — | 154.32 |
| 4" | 100 | Class 600 | 3.94 | 17.01 | 17.01 | 17.13 | 8.56 | 4.07 | — | 15.75 | 257.94 |
| 4" | 100 | Class 900 | 3.94 | 17.99 | 17.99 | 18.11 | 8.88 | 5.45 | — | 15.75 | 284.40 |
| 4" | 100 | Class 1500 | 3.94 | 21.50 | 21.5 | 21.61 | 9.57 | 5.98 | — | 15.75 | 425.49 |
| 4" | 100 | Class 2500 | 3.43 | 26.50 | 26.50 | 26.89 | 10.12 | 7.32 | — | 23.62 | 1018.53 |
Related products
Leave Us Your Info
Could you please kindly fulfill the following information when enquiring:
Valve type (ball, gate, globe, check etc.), valve size, pressure class, valve material, and end connection (flanged, butt welding etc.)
